Telescopic valve VTE

Telescopic valve VTE

- Sludge level regulation
- Manual operation
- Customized stroke

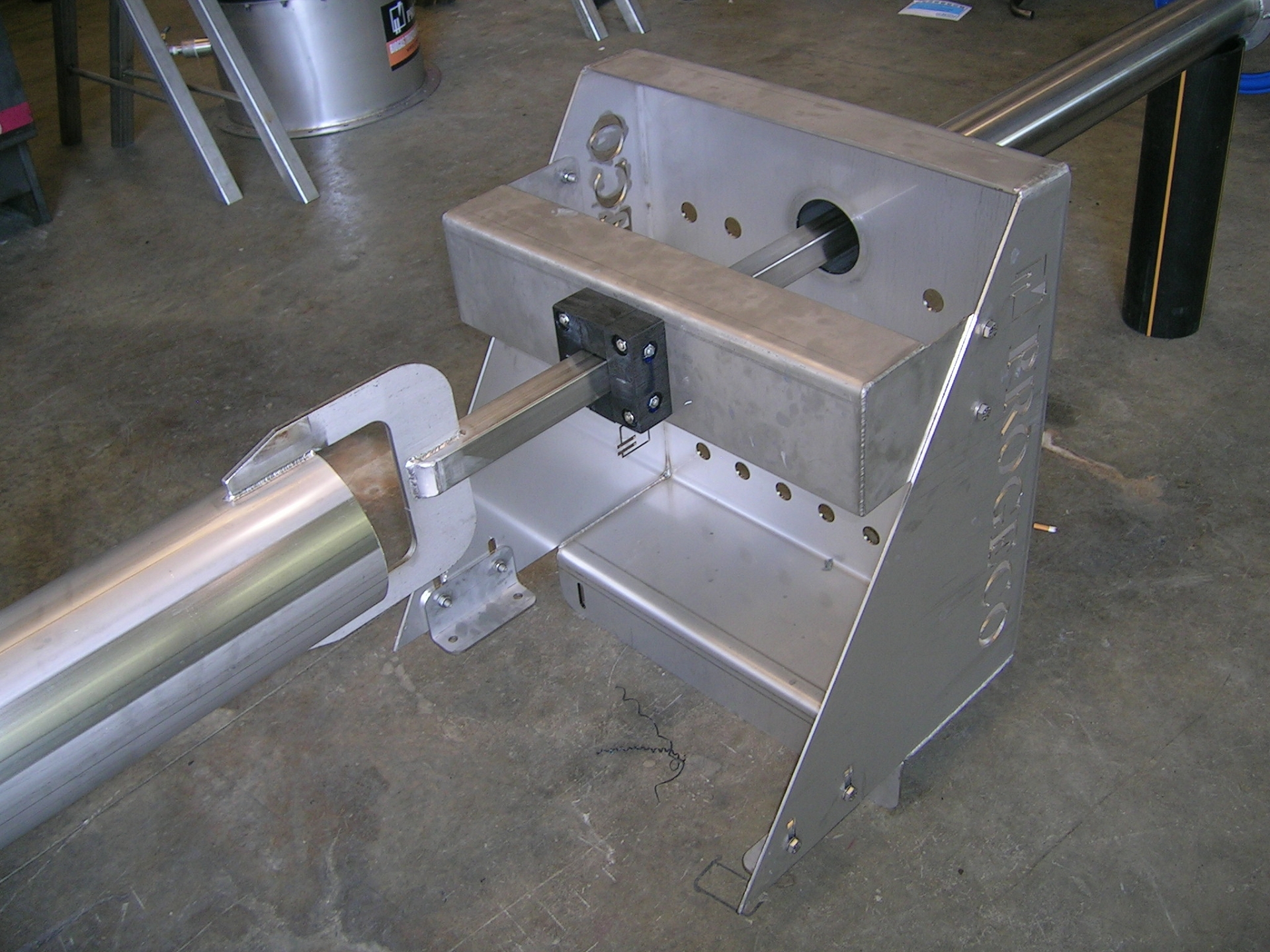

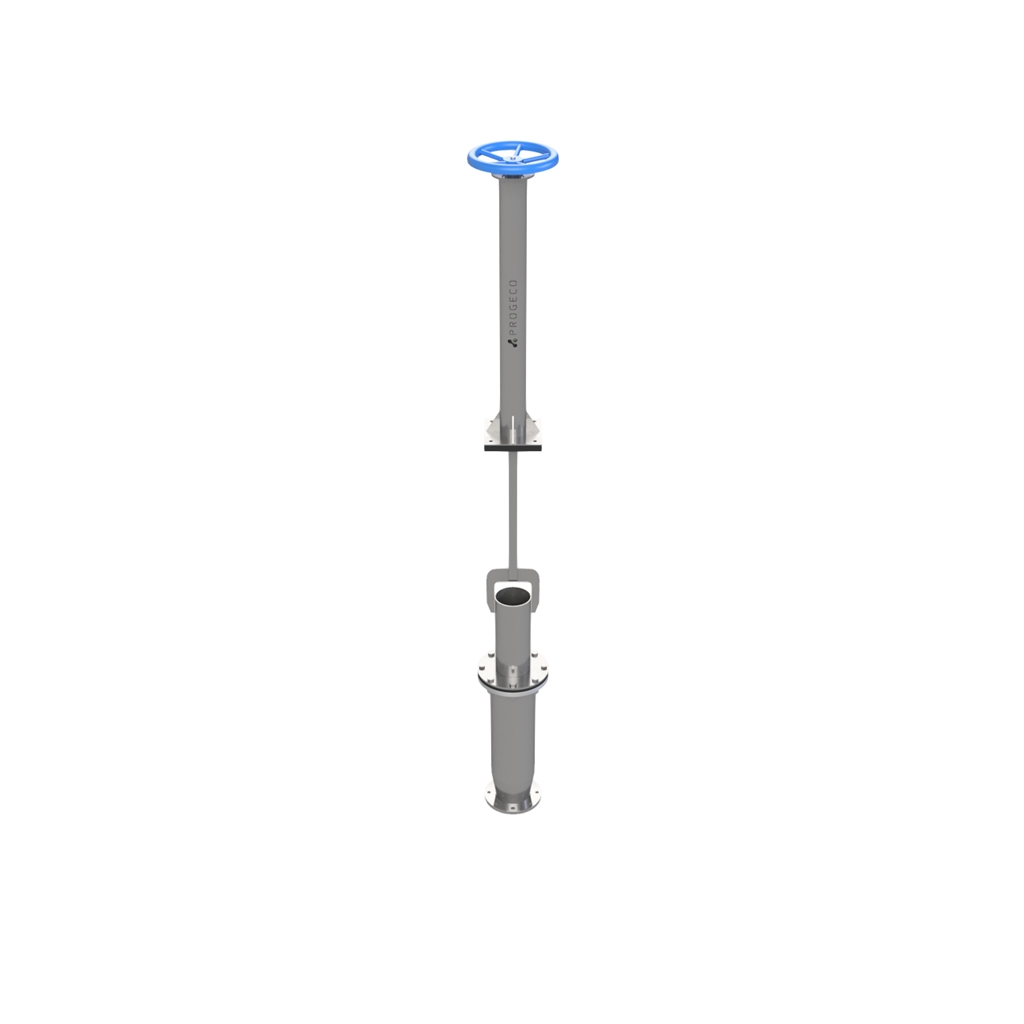

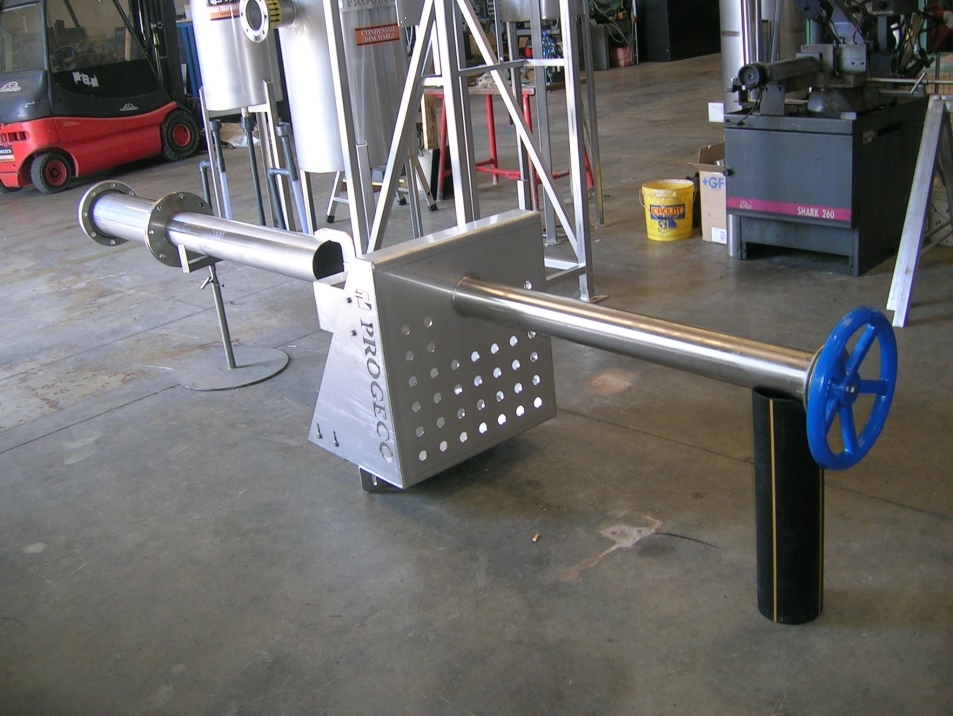

VTE telescopic valves are designed and installed for level control in tanks or digesters. The unit is composed by two concentric pipes one nested within the other.
The outer pipe (fixed) is connected to an existing drain by means of a flange at its lower end; the inner pipe is sliding and can be raised or lowered by means of a threaded rod and a handwheel, thus achieving adjustable height of the upper outlet. Suitable gaskets ensure watertightness between the inner and the outer pipe.

Product features
  • Stainless steel construction
  • Standard DN200 flanged connection
  • Standard stroke: 140 cm
  • Customized stroke and flanged connection available upon request
