EMR ADV - Semi-enclosed flare stacks

EMR ADV - Semi-enclosed flare stacks

- Partially visible flameĀ
- Wide range of flow rates
- Insulated combustion chamber

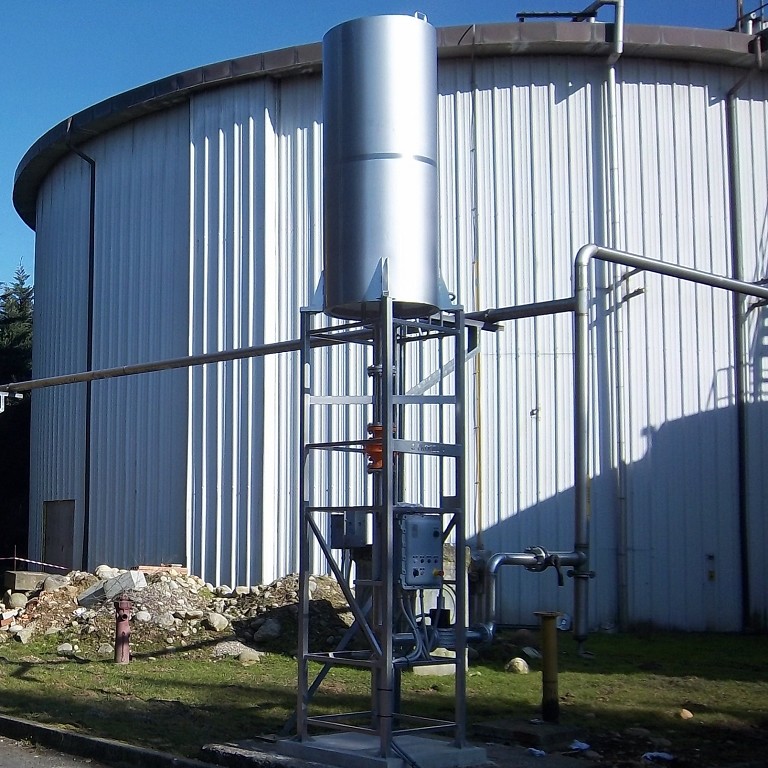

EMR ADV flares are the most suitable solution in installations where combustion temperature and flame visibility are not subject to any regulation but it is required that the flame is partially hidden and contained inside a combustion chamber.
The multi-nozzle burner and the particular design, size and features of the combustion chamber allow the burning of biogas at a higher flow than in open flares.

Product features

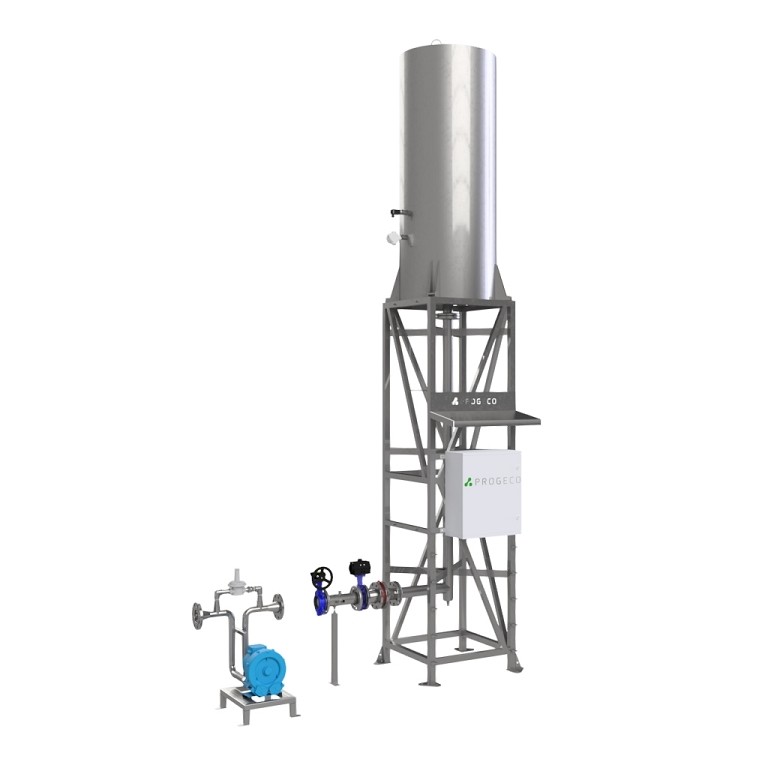

  • Semi-enclosed flare
  • Stainless steel frame with base plates for anchoring to concrete slab
  • Combustion chamber fitted with fiberceramic insulation lining
  • High voltage electrode-type ignition device and UV sensor for continuous flame detection

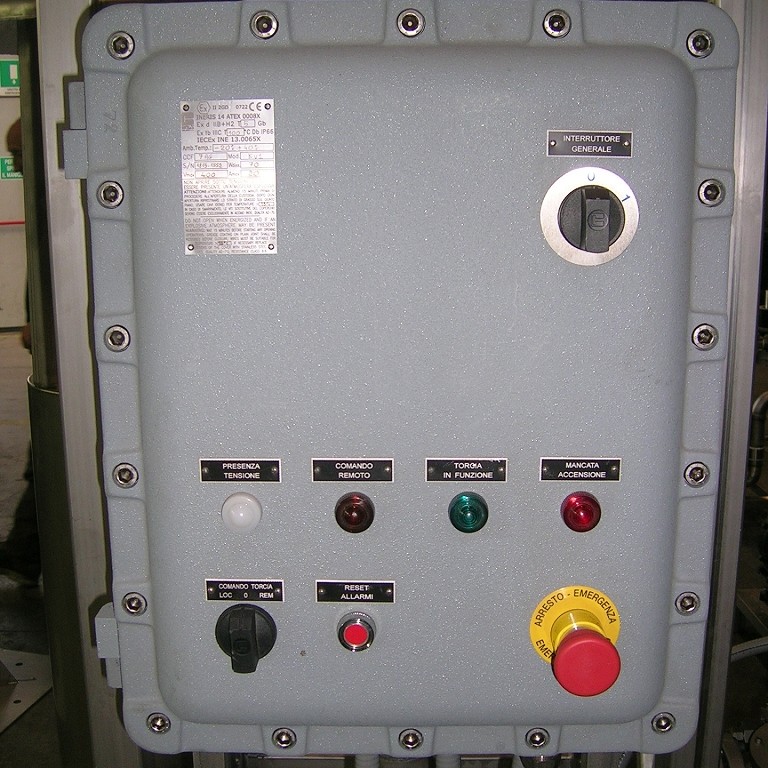

  • Fully automatic operation
  • Biogas blower and other options upon request
